ALPHA 3D RIG

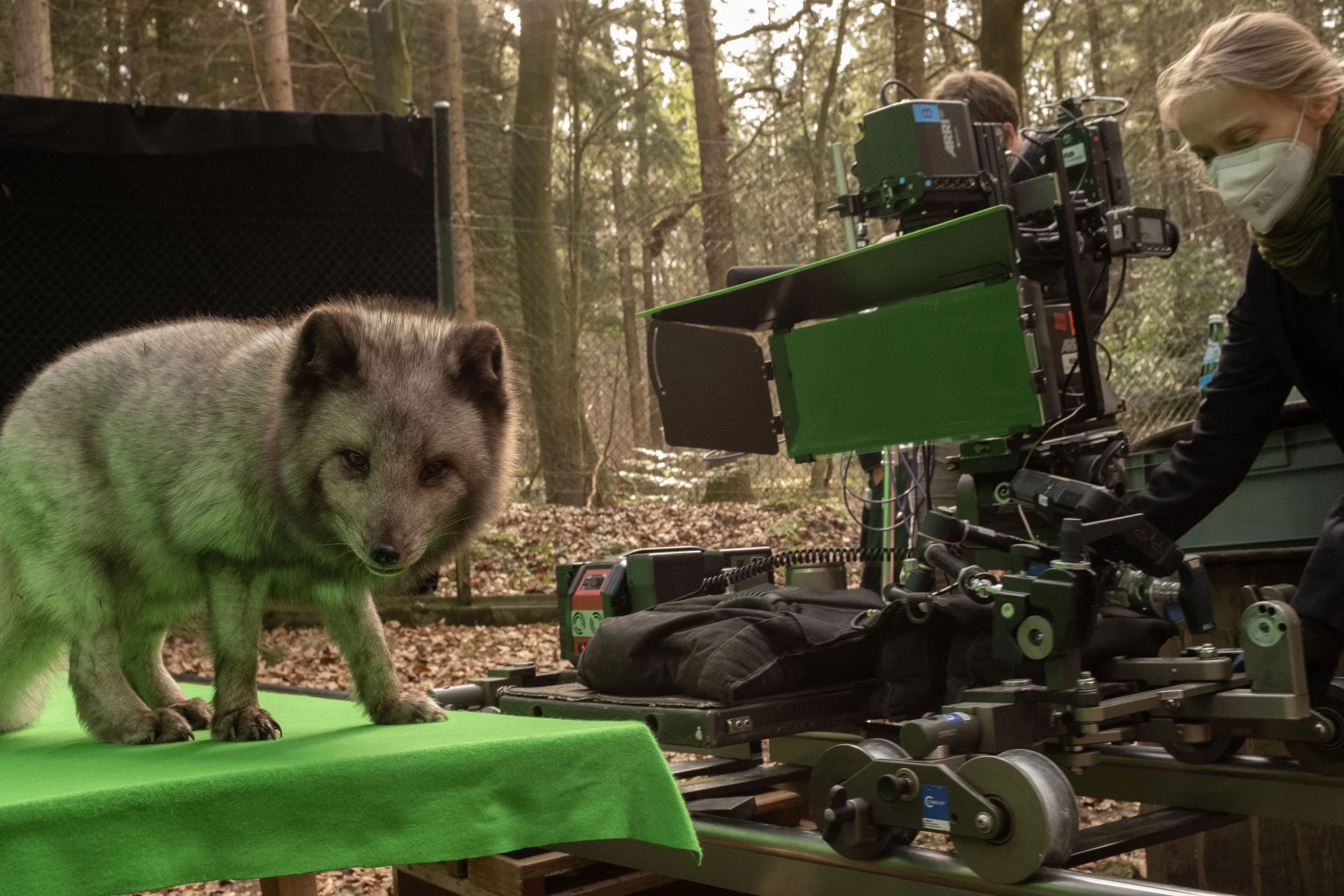

The ALPHA 3D RIG can be used for Stereoscopic 3D filmmaking and can capture exactly the same image pixel by pixel with two cameras. This can be used in various applications.

APPLICATIONS

SODIUM VAPOUR PROCESS (Yellowscreen) video

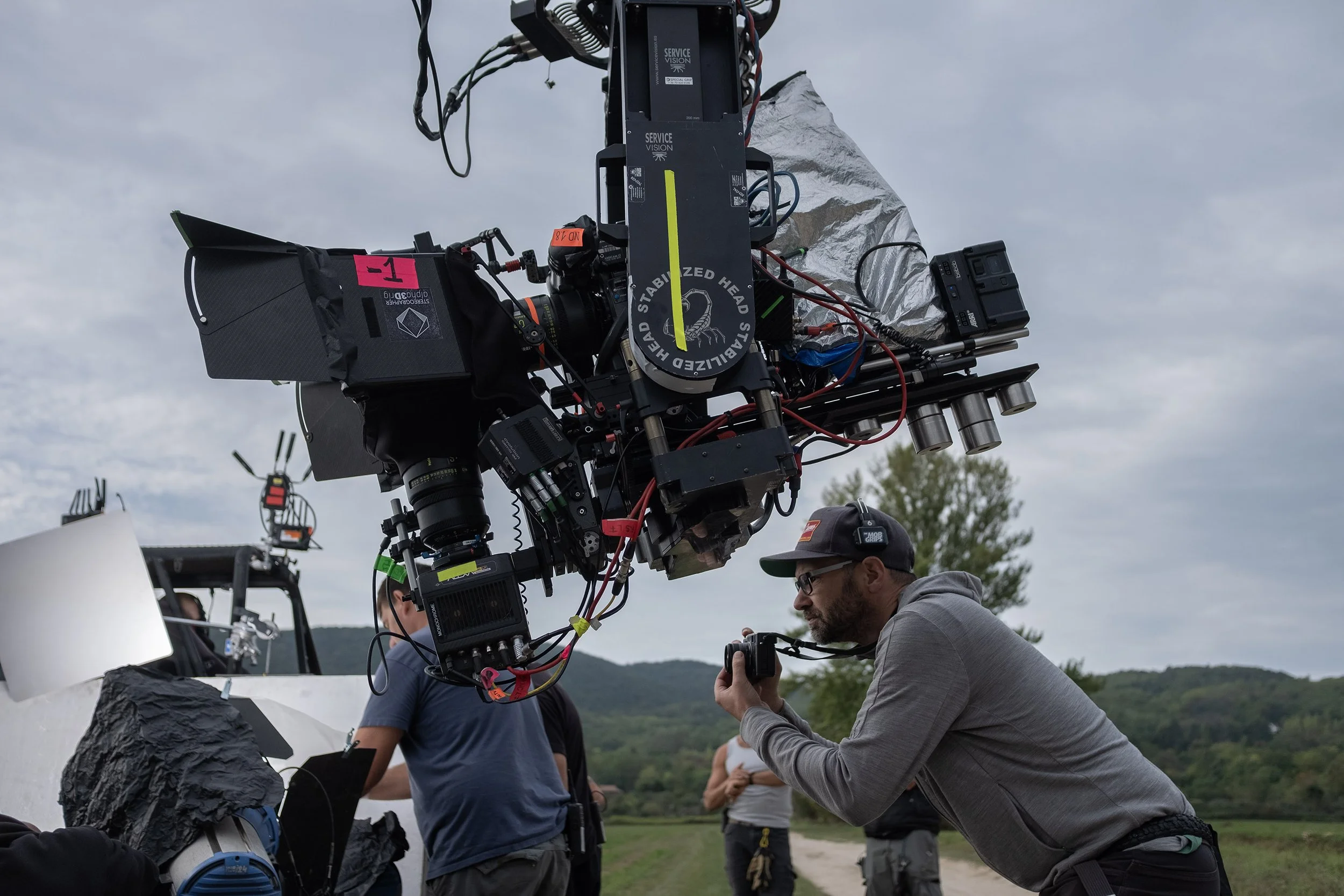

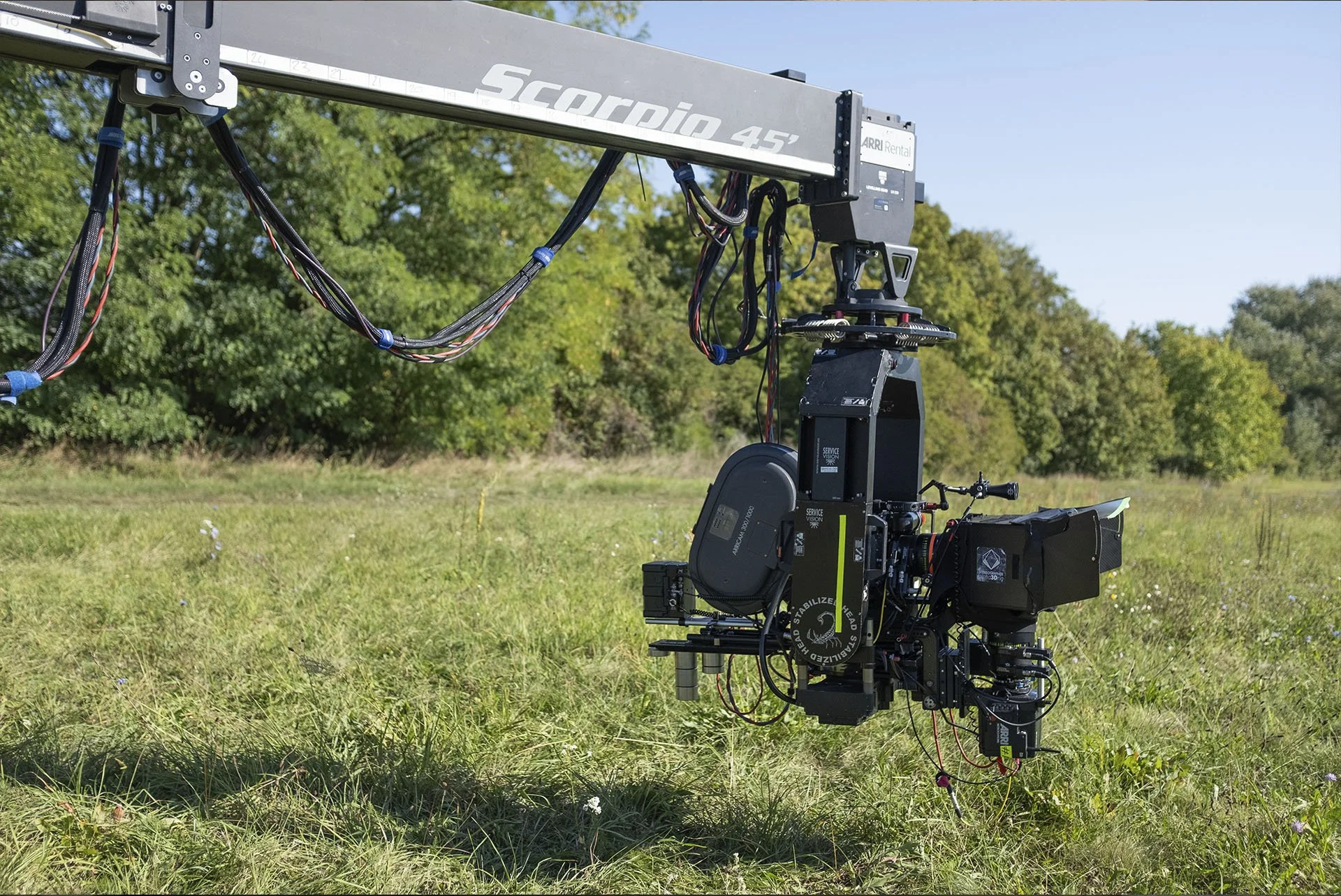

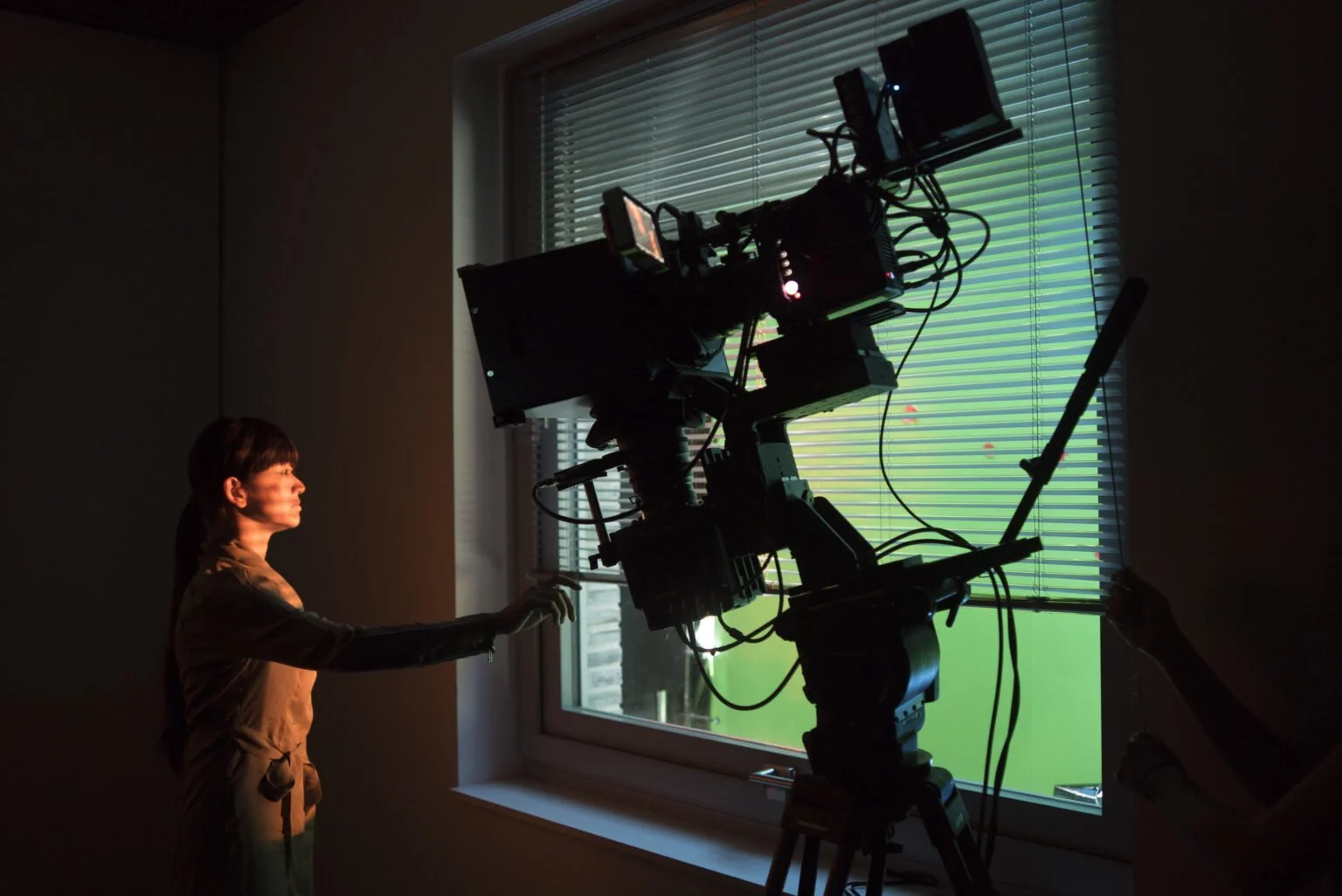

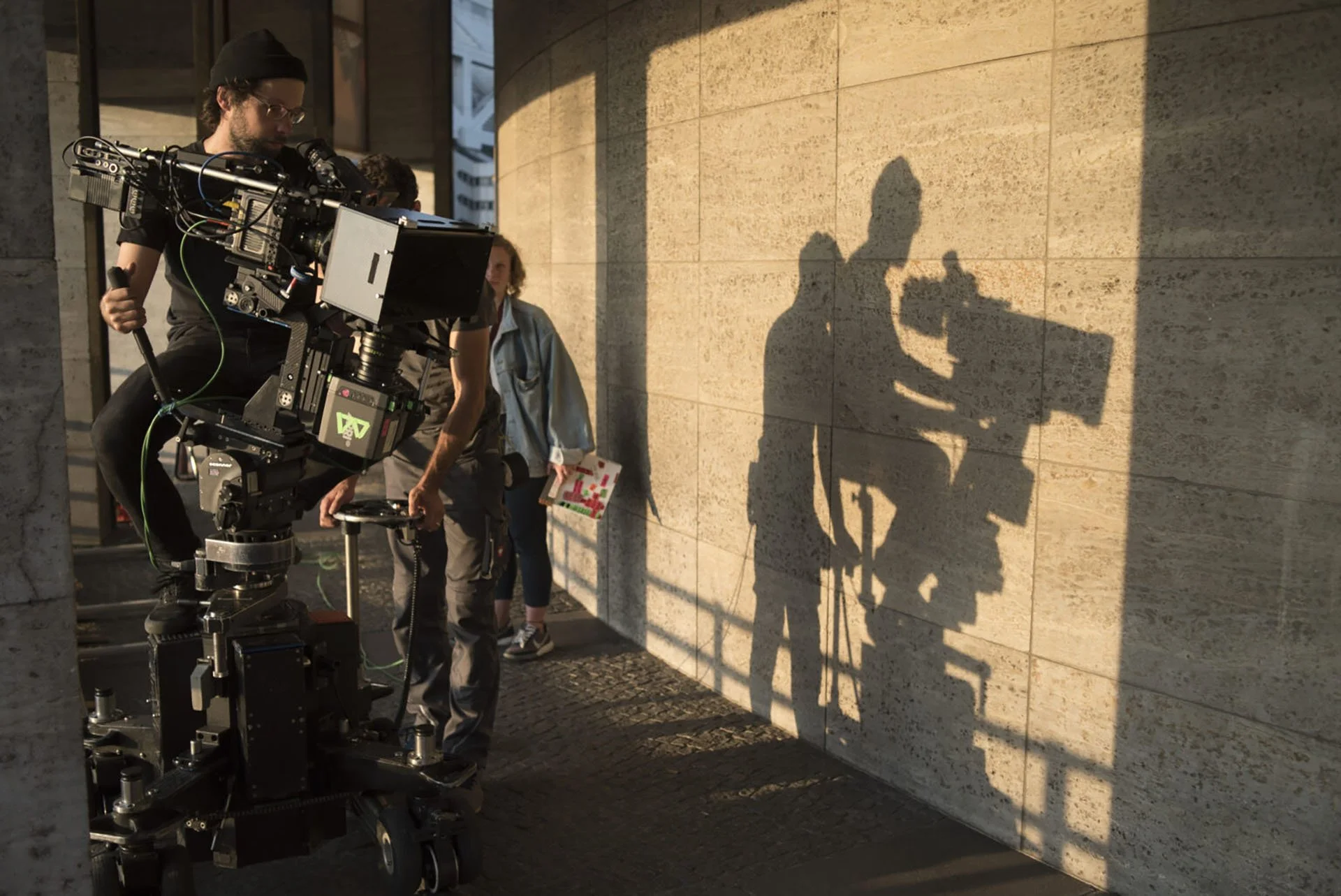

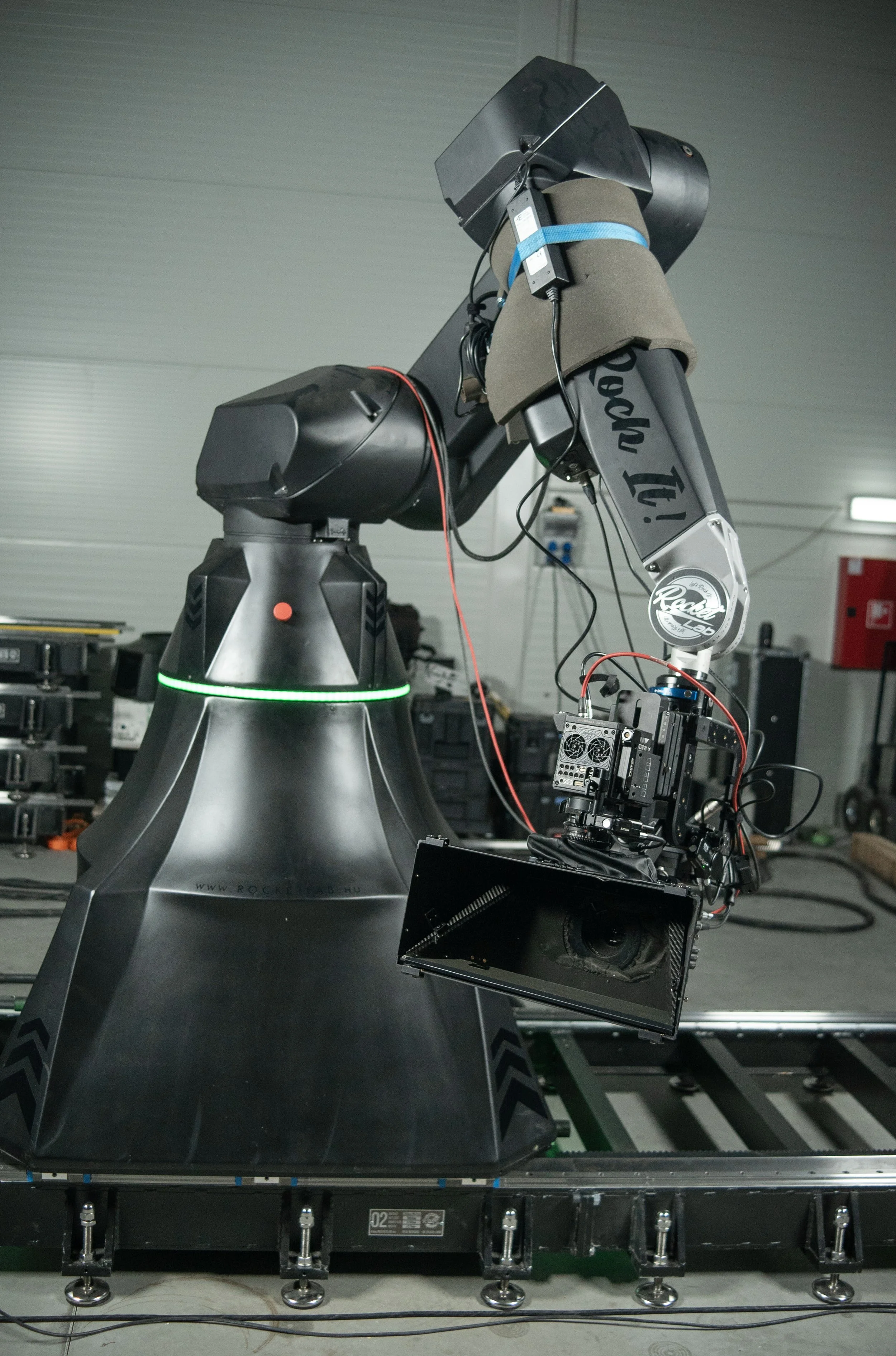

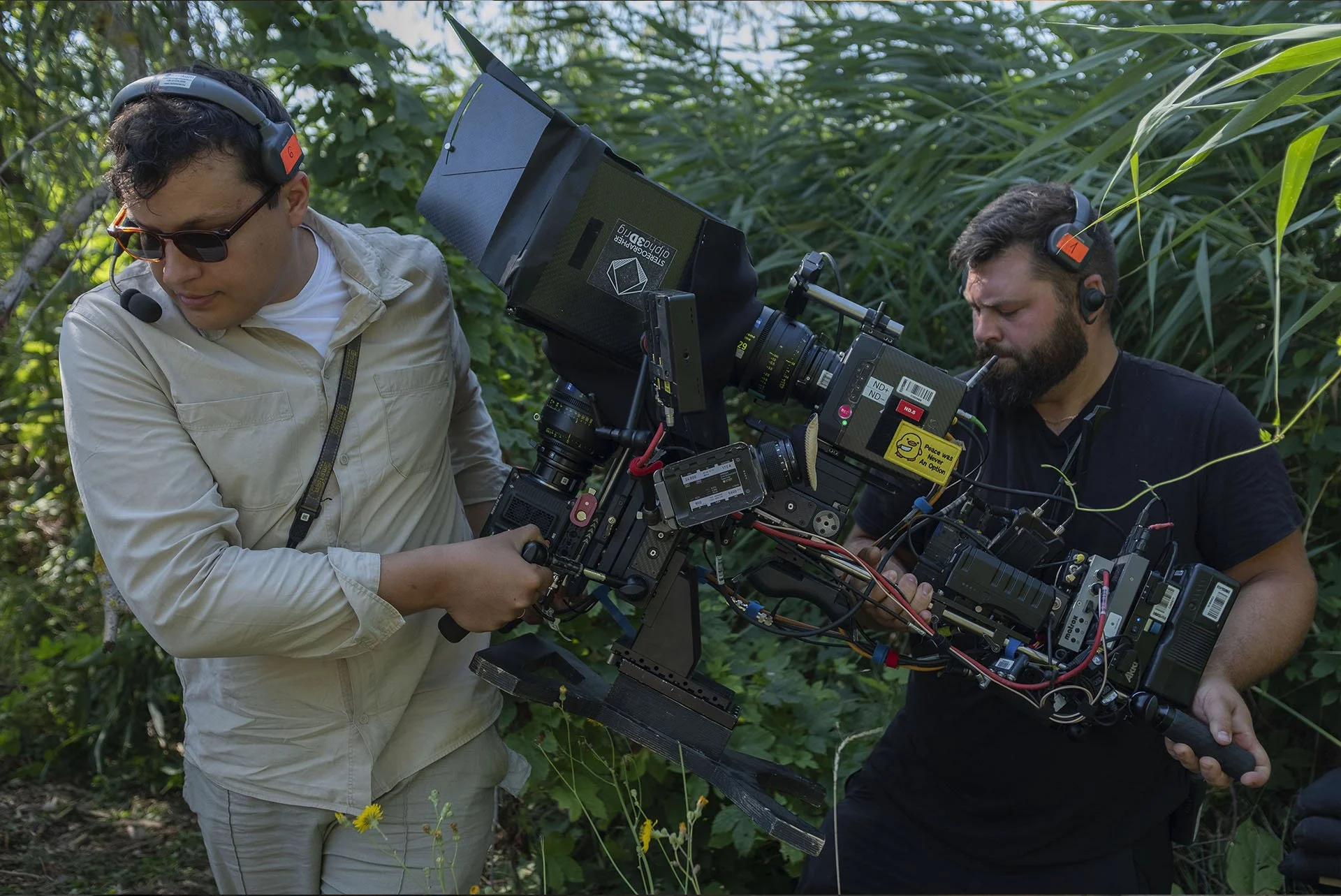

DAY FOR NIGHT WITH INFRARED video
HIGH DYNAMIC RANGE

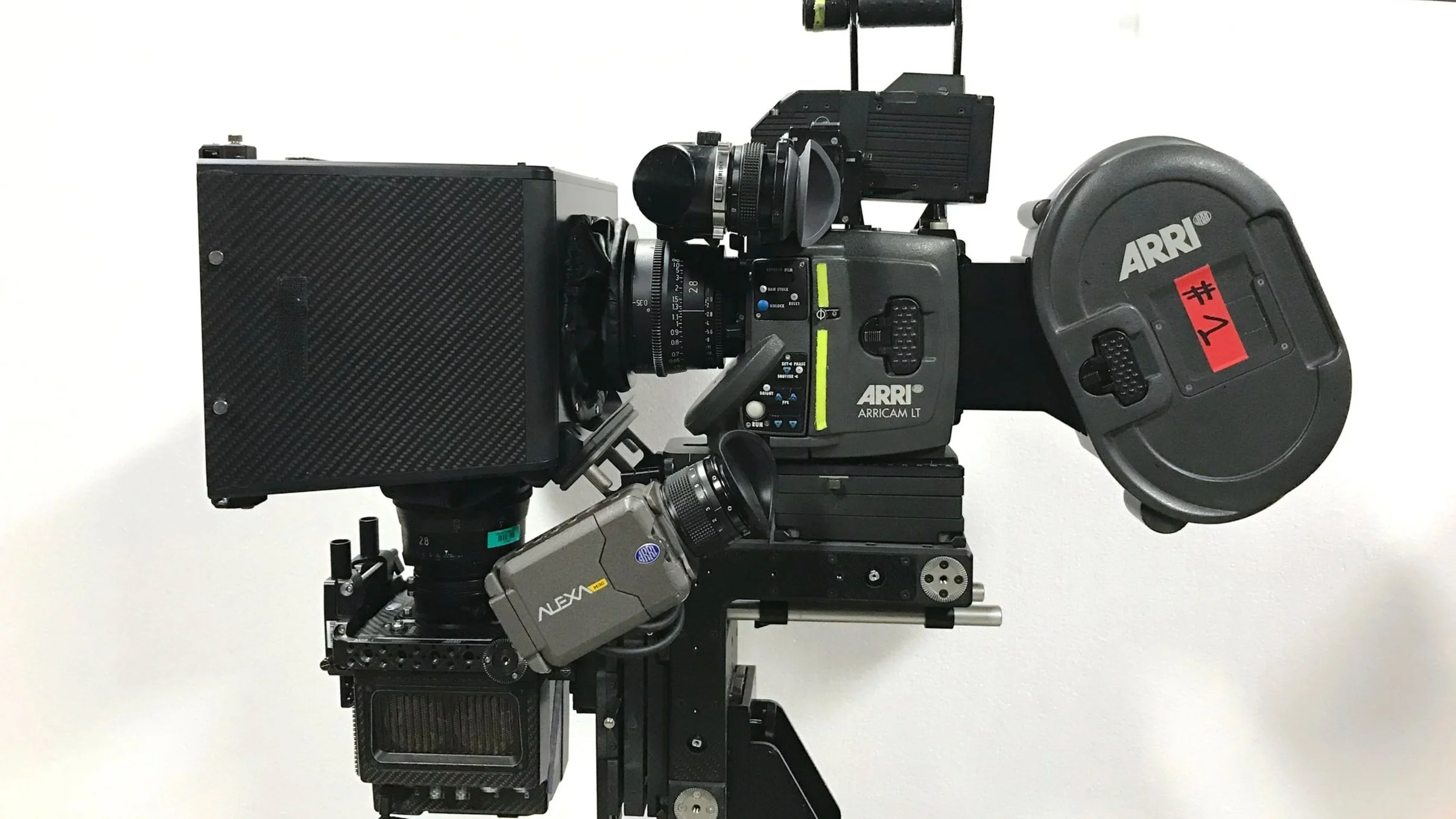

STACKING OF IMAGES with different mediums e.g. analogue film camera + digital camera different frame rates or different focus settings
The ALPHA 3D RIG was created to be an effective tool for filmmakers who endeavour to tell powerful stories. We are proud to present an excellent tool that eliminates the concerns related to stereoscopic rigs of the present market.
The ALPHA 3D RIG is the result of four years of continuous research and development, created with attention to the finest ergonomic and technical details. Every aspect of the design is developed on the basis of extensive first hand stereoscopic shooting experience.

Optics

The ALPHA 3D RIG incorporates state of the art high quality beamsplitter developed by our company for ultimate image quality and symmetry. The beamsplitter is indifferent to polarized light, it has low color shift, and fulfills strict MIL environmental and durability requirements.

Mechanics

The concept was to create a fully mechanical design that is simple, reliable and functional in all shooting conditions. The goal was to keep weight to the minimum. Our experience was that only the motorization of the interaxial is essential.

Fine adjustment of all 6 axis

Interaxial (translation on X axis) both cameras move to maintain center of gravity in the range of -10mm to 100mm
Height (translation on Y axis) in the range of – 5mm to + 5mm
Distance to Mirror (translation on Z axis) in the range of – 5mm to + 5mm
Tilt (rotation on X axis) in the range of – 1° to + 1°
Roll (rotation on Z axis) in the range of -1° to + 1°
Convergence (rotation on Y axis) in the range of -4° to +8°

Design & Ergonomics

The ALPHA 3D RIG has been designed with the utmost attention to the finest ergonomic and technical details.

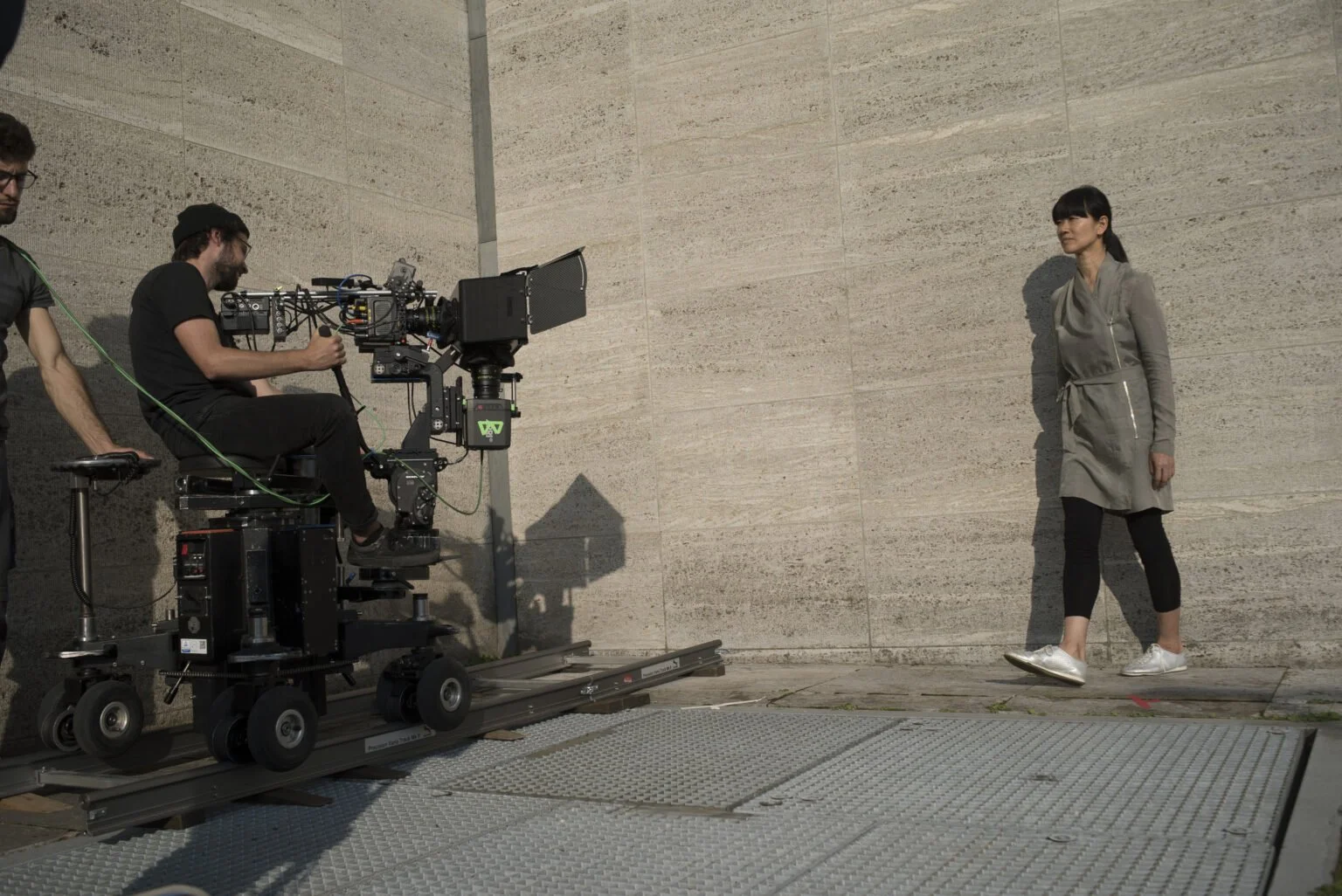

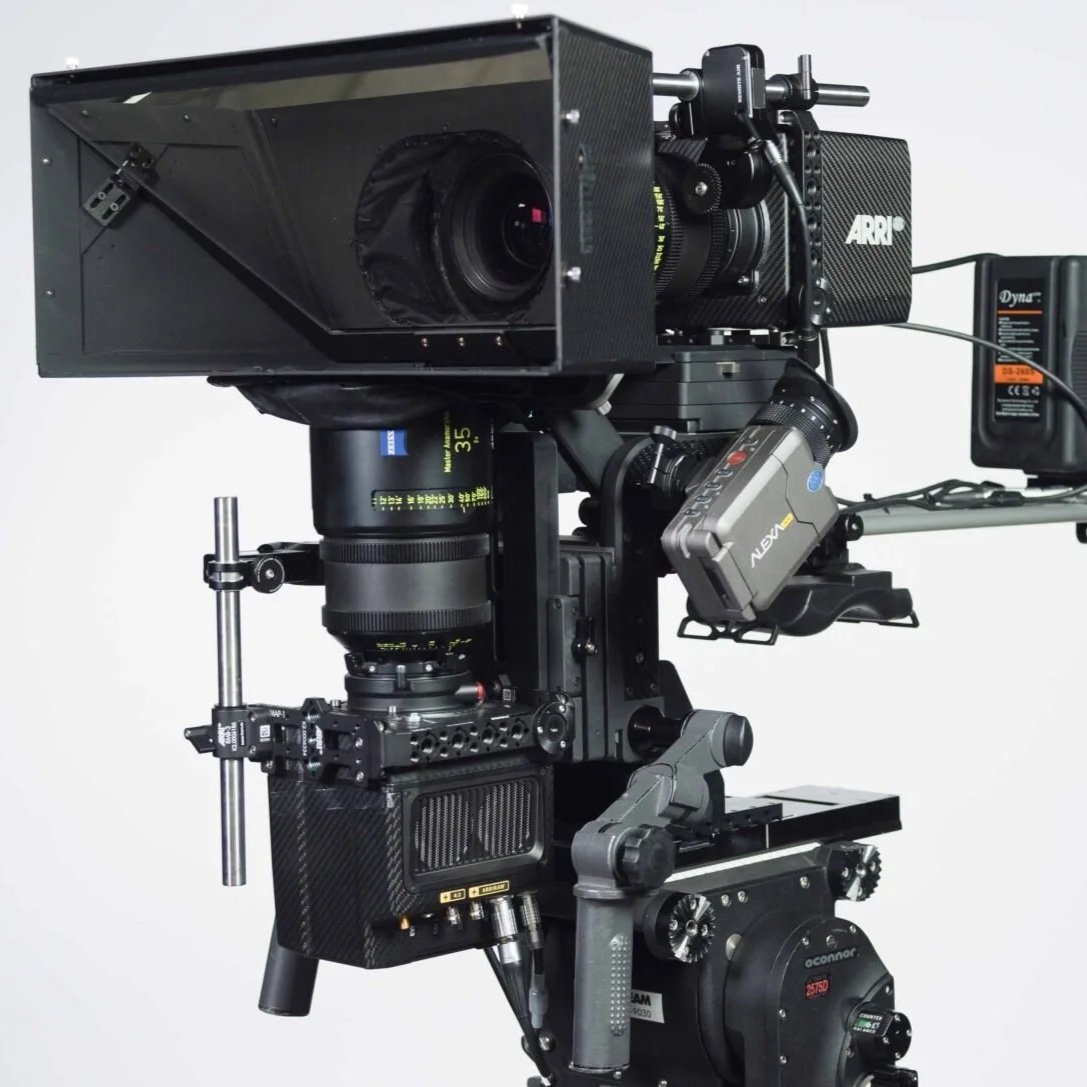

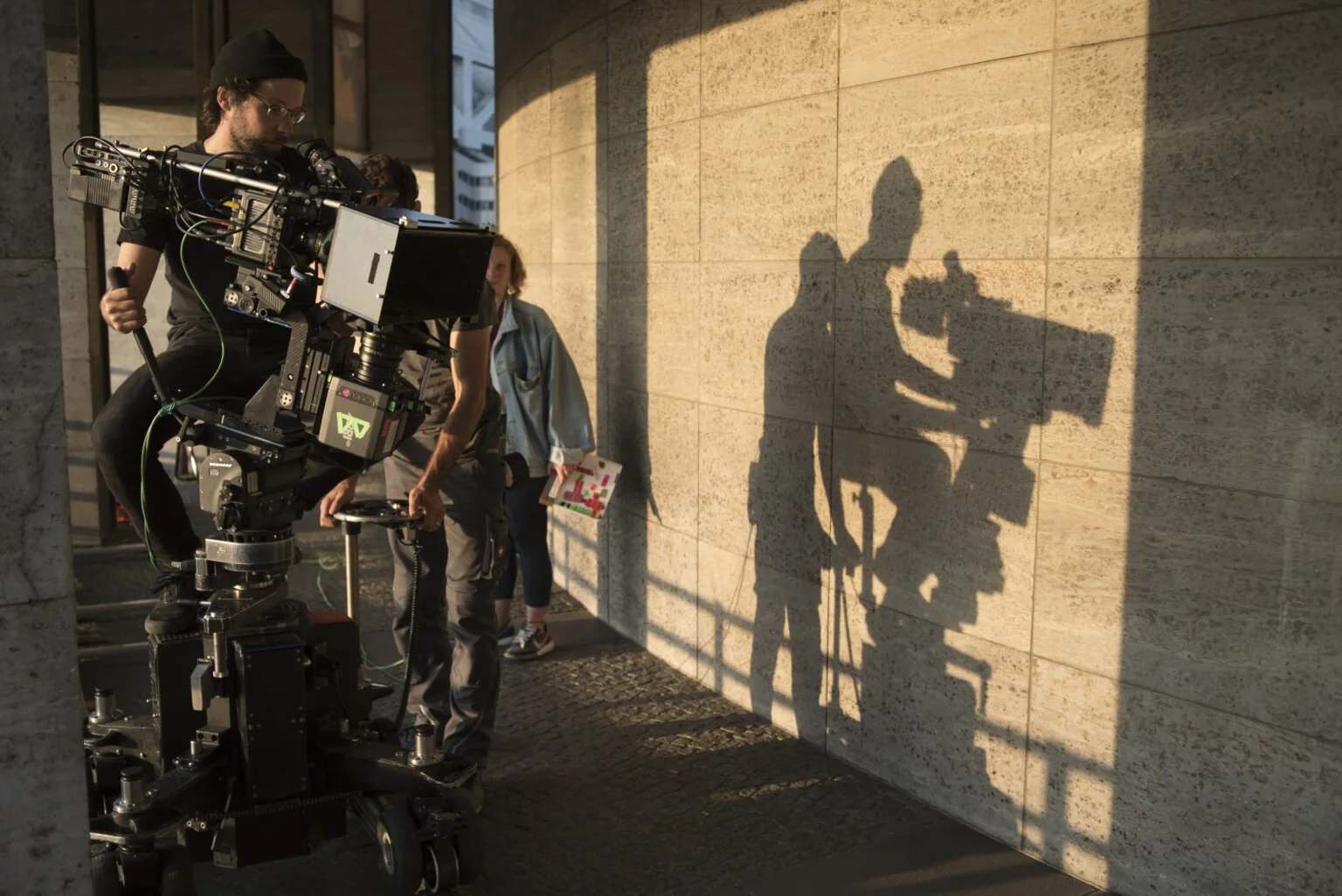

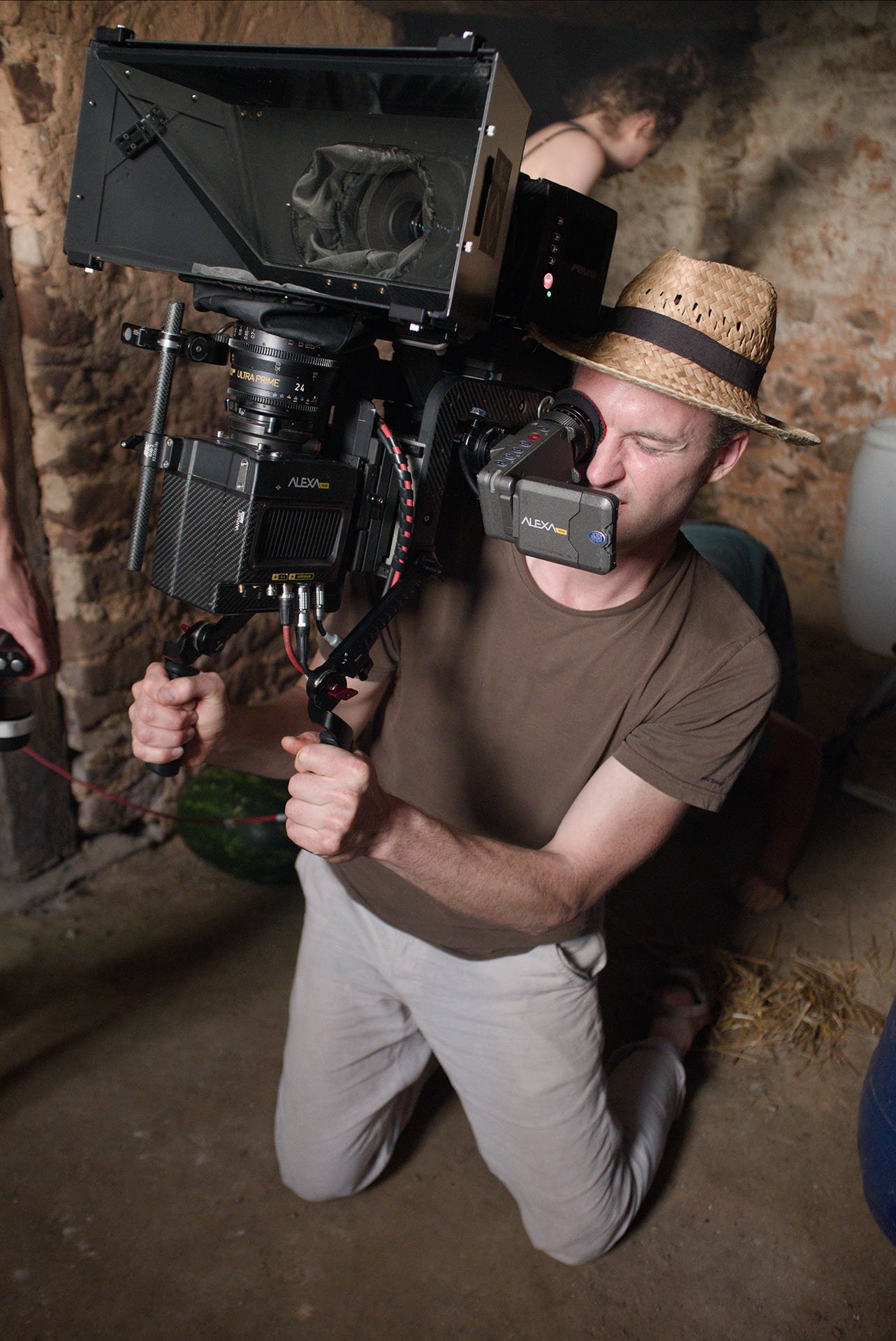

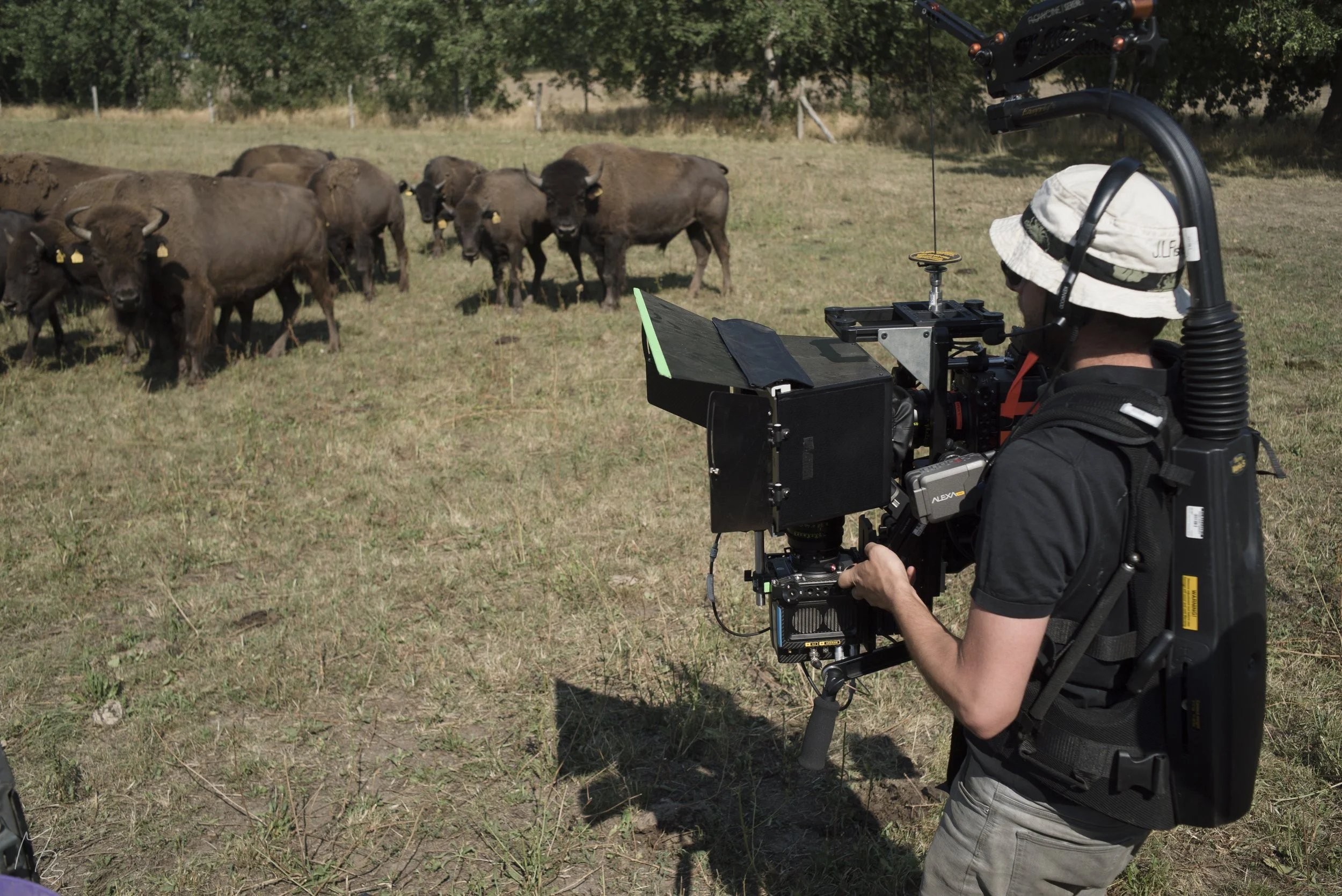

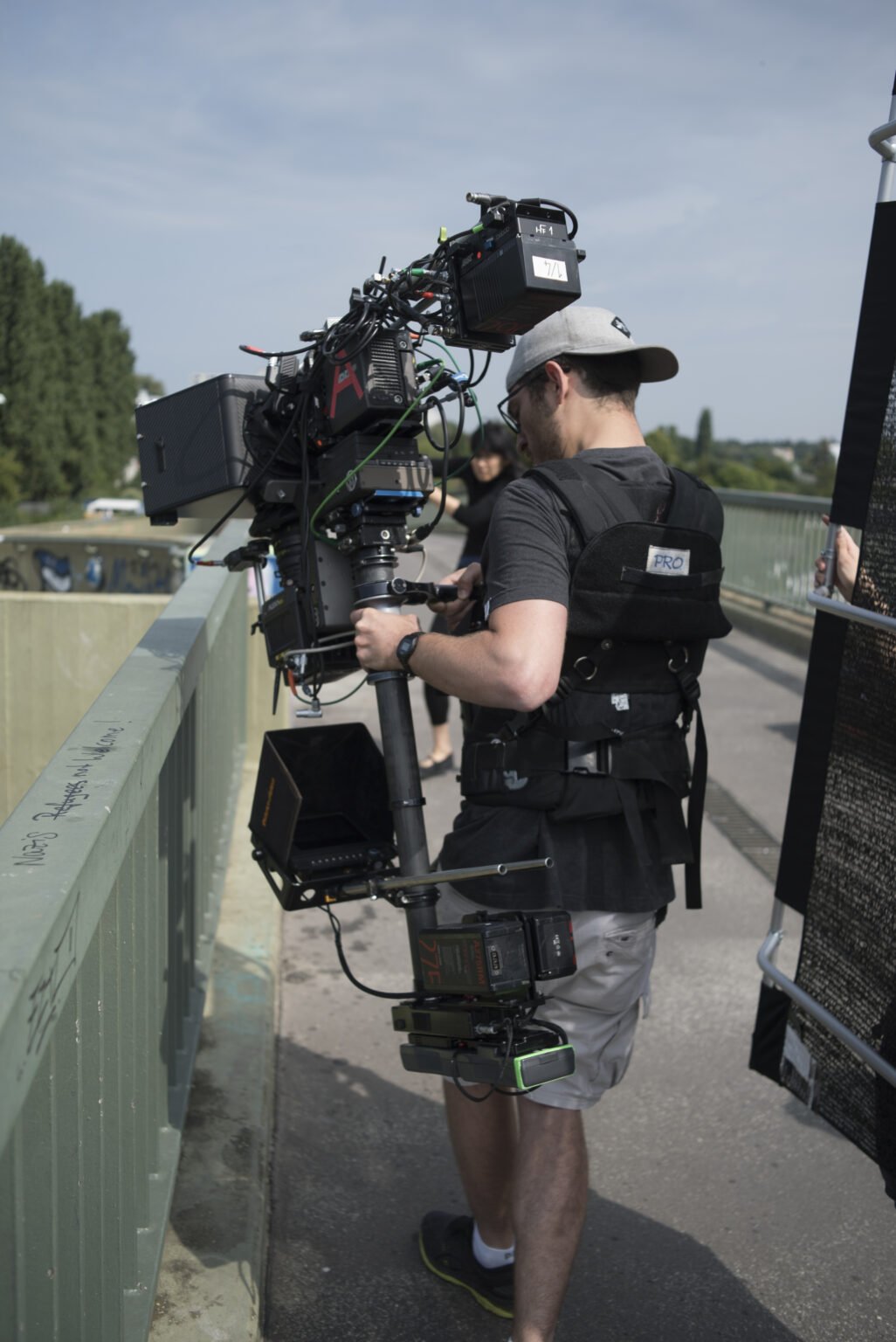

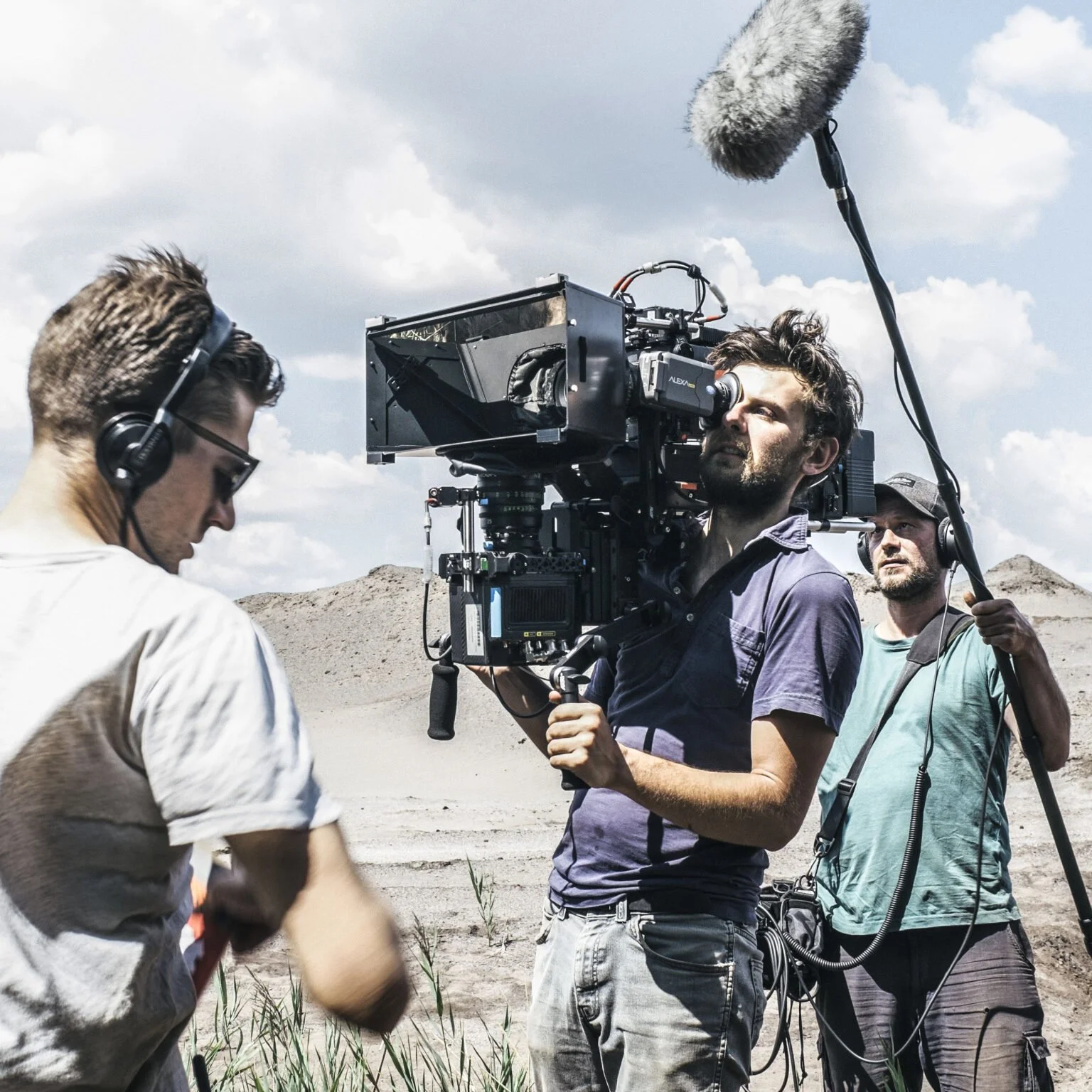

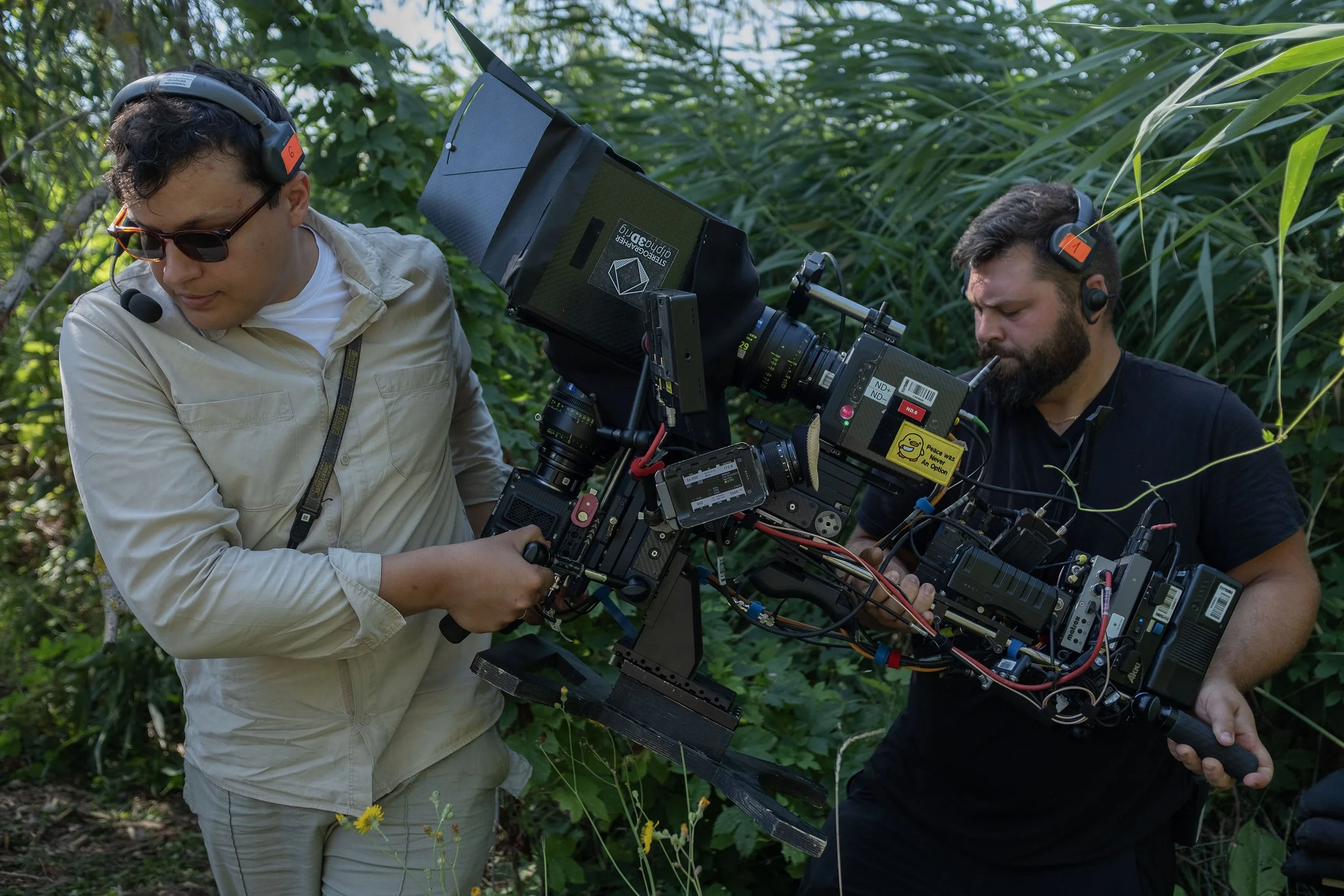

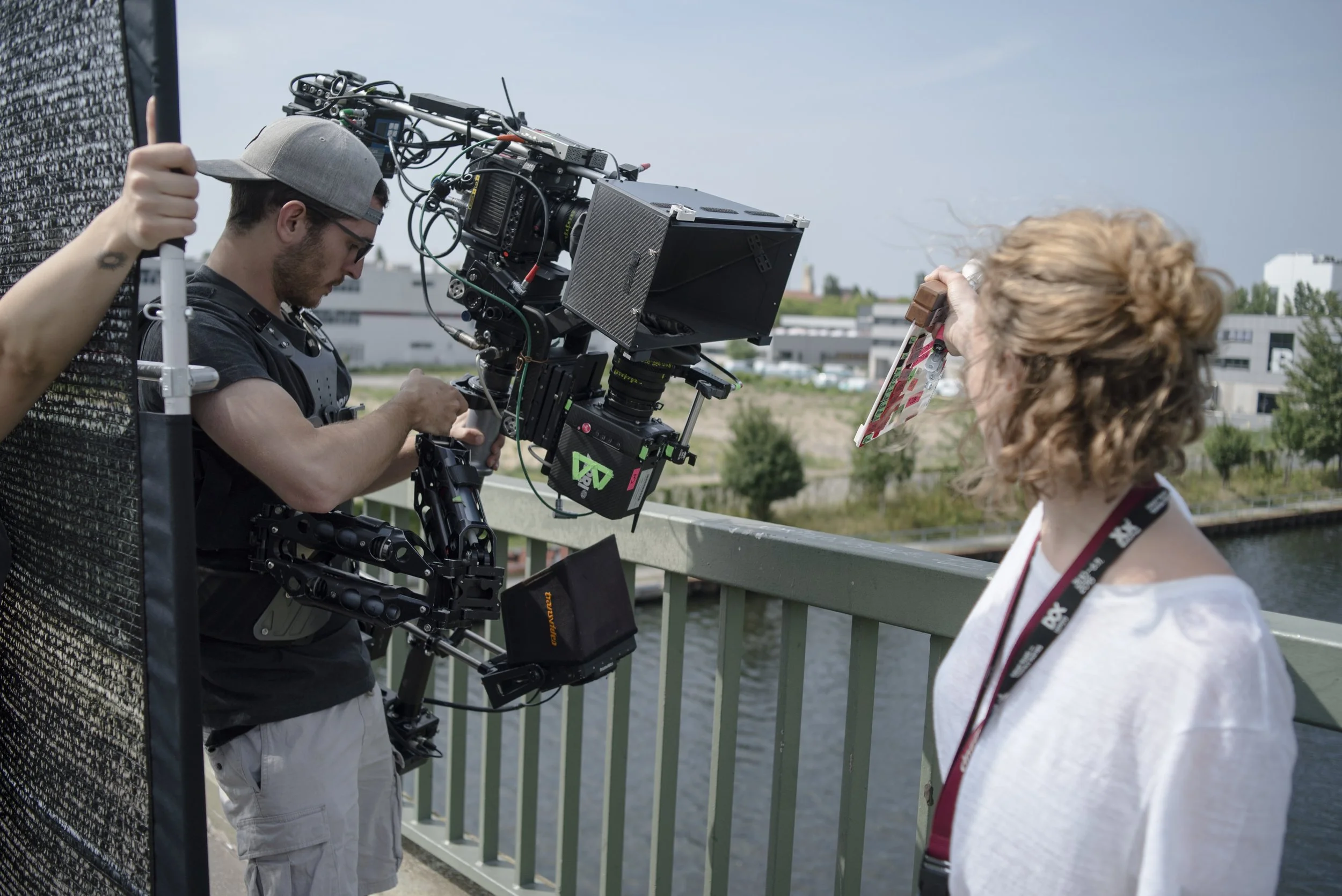

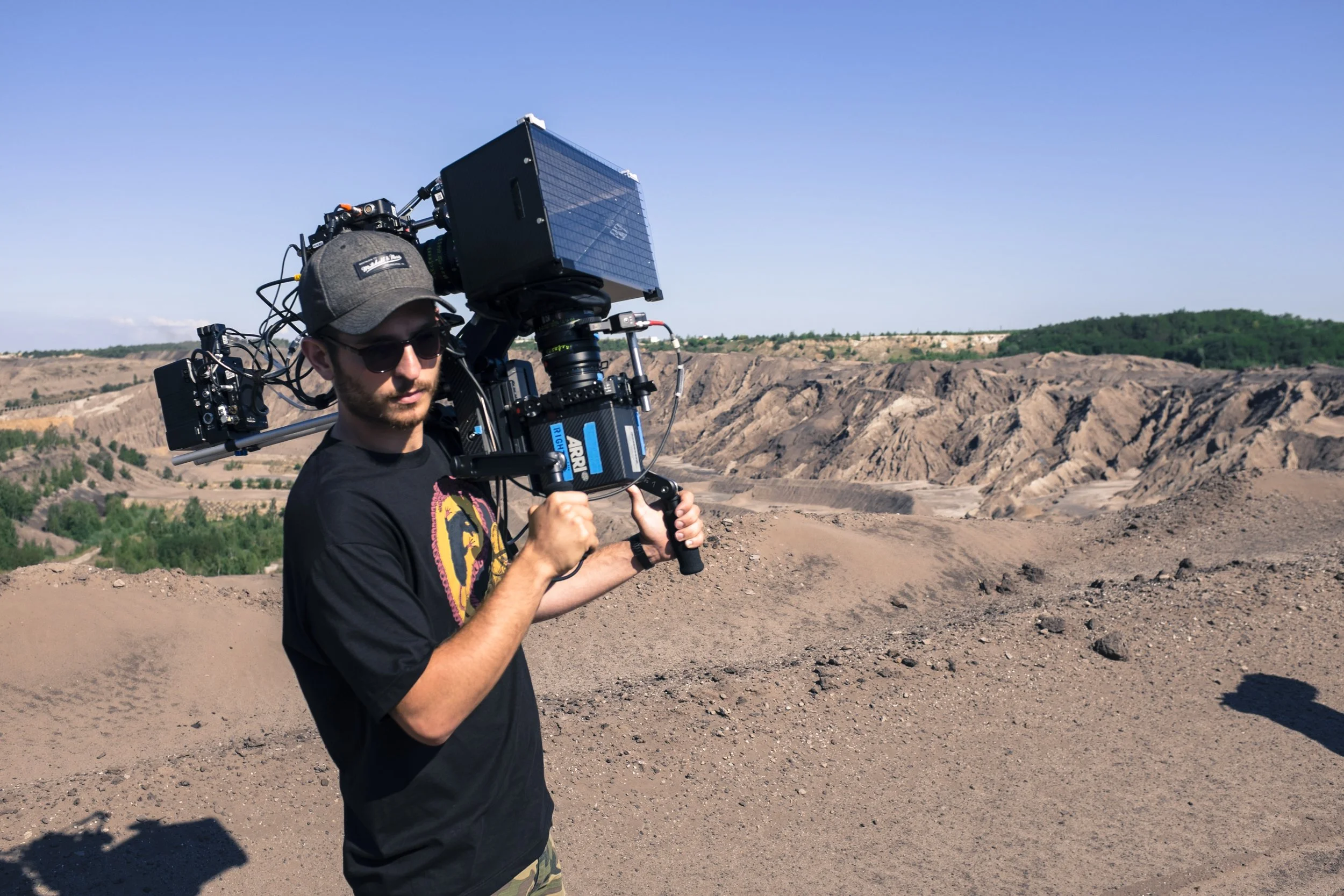

The ALPHA 3D RIG is lightweight, optimized for best performance. It weights 8.4 kg and it is comfortable and well balanced for handheld and steadicam use. It fits perfectly the ARRI Alexa Mini and RED DSMC2 mechanical accessories.
The mirrorbox can be removed and attached quickly and precisely without the movement of the cameras, greatly speeding up the alignment process between lens changes.

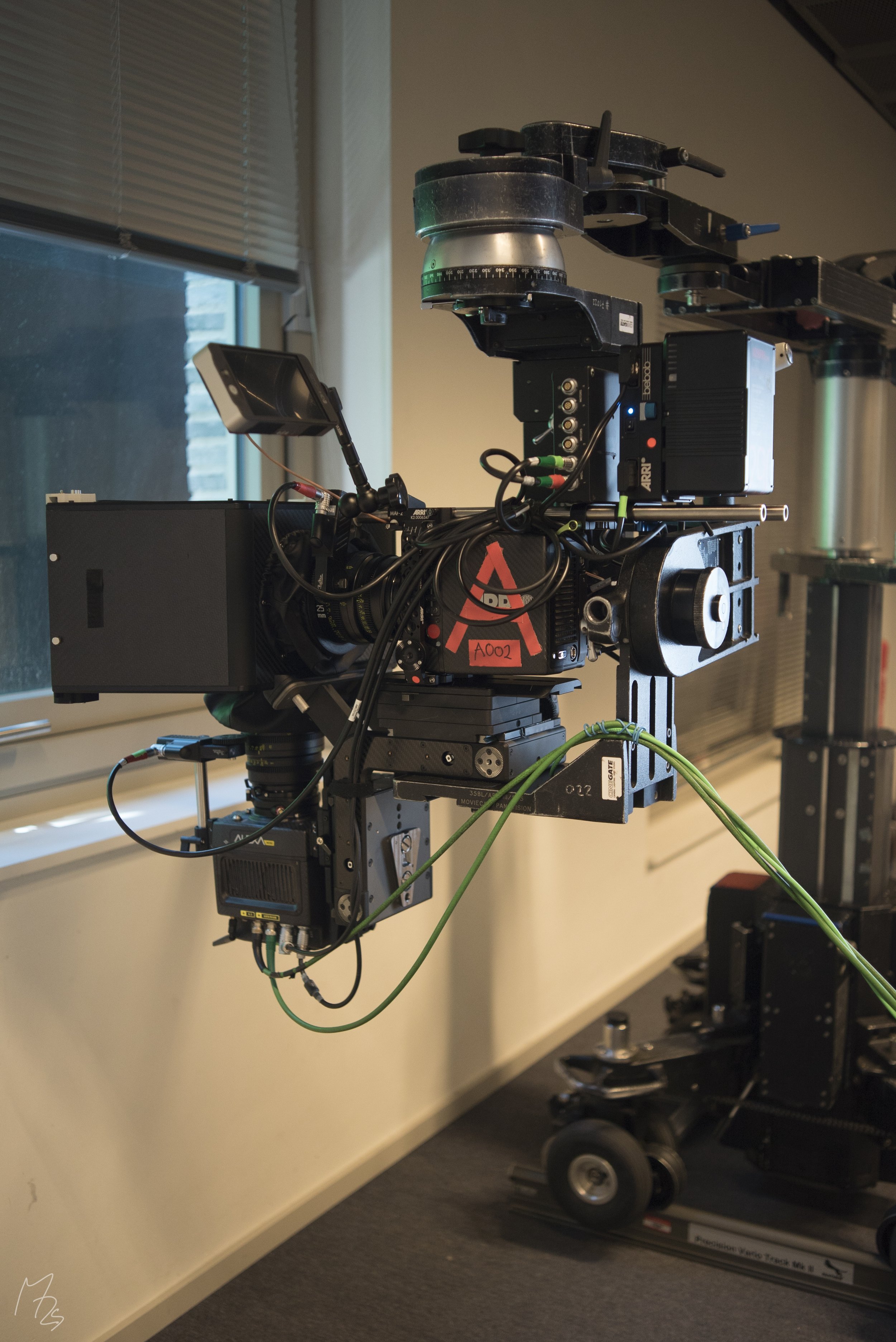

The ALPHA 3D RIG is compatible with ARRI Alexa Mini, RED DSMC2 sized or smaller cameras. The mirror box accepts spherical lenses with maximum diameter of 114mm from focal length 18mm and anamorphic lenses from focal length of 35mm. The rig can be equipped with long lens support brackets for zoom lenses.
Easy and fast lens change, quick attachment of mirror box
Fast and easy tripod placement, one person can carry
Side, bottom, and top french flags
Fine adjustment position and limit markings
ARRI rosettes and NATO rail attachement possibilities
Mirror protecting front plexiglass cover
Easy and fast mirror replacement option
Long lens support brackets for zooms

A full working setup weighs 22,8 kg / 50 lbs

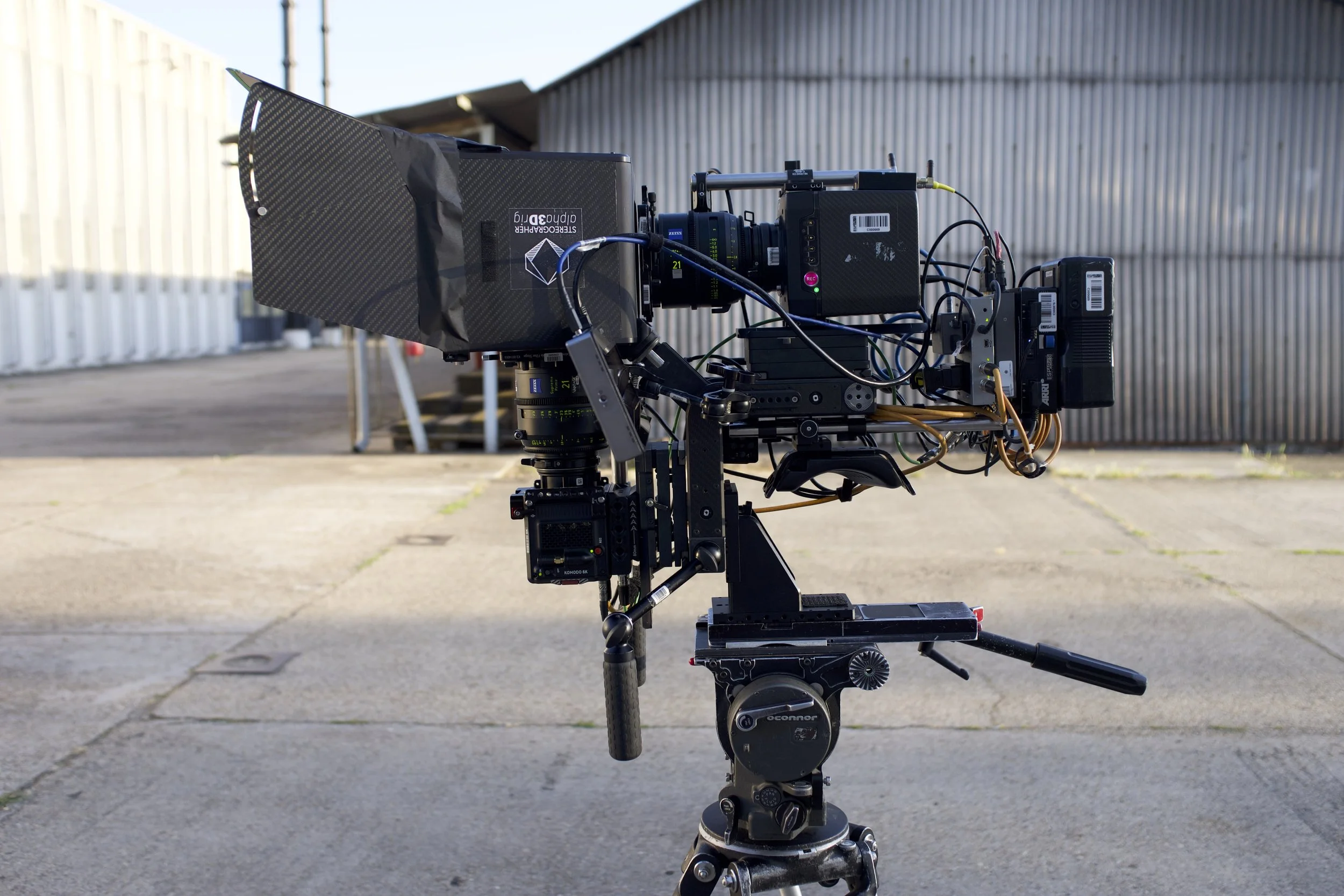

STEREOGRAPHER ALPHA 3D RIG, 2x ARRI Alexa Mini, Viewfinder, 2x Zeiss CP.3, Cmotion Camin M3 with 3 motors, 2x Teradek Bolt, 1 High Load Battery
